MCA Backlash-free torque limiter

產品型號：

標準編號：
聯軸器類型：
公稱轉矩：
軸孔：
外形尺寸：
孔徑：
重量：
長度：
外徑：
是否提供加工定制：

產品描述
參數詳情

Through balancing the nut to perform precise adjustment

The torque limiter is equipped with a scale meter, which is convenient for torque adjustment

Re-reset at equal intervals or 360°

No maintenance

Can be equipped with fine-tuning mechanical switch/proximity switch to stop the motor drive, the assembly drive assembly is directly supported by roller bearings



on request:

Equipped with a complete set of transmission components assembly (sprockets, pulleys, gears...)

Can be connected through 8 holes, the component can be circulated with other products on the market

Equipped with connecting flange to connect with the most common intermittent drive unit

Mesh can be customized to stage 30 °, 45 °, 60 °, 90 °,..


The Backlash-free torque limiter has high technology and high accuracy. A backlash-free motion transmission is provided through a highly sensitive reaction action, which can be released instantly after reaching the set release torque.


main application

Bottle blowing machines, filling machines

labeling machines and other packaging machinery

CNC tool machinery, indexing table

Director, powertrain

Servo motor, guide rail



advantages and features

Protect the product in case of overload

Protect the indexing device when the transmission is overloaded

In the event of a collision, protect the mechanical operating unit

In case of collision or limit stop, protect the slide rail or servo motor




MCA：Keyway connection

0.62-3200 Nm

Maximum hole75mm



MCA4.0:Expansion sleeve connection

0.62-3200 Nm

Maximum hole50mm



...+G:Connected by flexible coupling, can accept higher compensation conditions

0.62-3200 Nm

Maximum hole95mm



MCA/PR-V：Suitable for direct connection between the motor and the hollow shaft reducer

0.62-3200 Nm

Maximum hole95mm

Assembly example

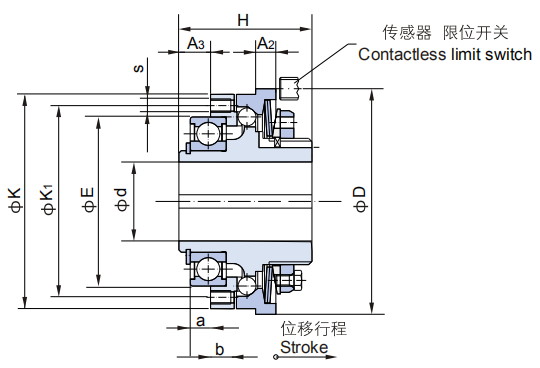

Dimensions

specification

D

E

K

d H7

K1

H

A2

A3

a

b

s

H6

maximum

0

45

30

40

11

35

24

6.5

4.5

2

4

6×M3

1

70

47

65

20

56

40

7

8

5

6

8×M4

2

85

62

80

25

71

48

8

11

7

7

8×M5

3

100

75

95

35

85

59

9

14

9

9

8×M6

4

115

90

110

40

100

64

10

16

10

10

8×M6

5

135

100

130

50

116

75

12

18

10

12

8×M8

6

171

130

166

65

150

115

16

21

12

15

8×M10

7

220

145

220

75

165

140

37

44

14

22

8×M12

Performance parameter

specification

Torque（N·m）

Overload stroke（mm）

inertia（kg·m2）

Maximum speed（rpm）

Mass（kg）

T1

T2

T3

T4

Flange side

Nut side

0

0.62-1.3

1.3-2.6

2-3.8



0.8

0.000025

0.000043

4000

0.17

1

5-12.5

10-25

20-50

25-62.5

1.2

0.000093

0.000205

4000

0.63

2

10-25

20-50

40-100

50-125

1.5

0.000234

0.000505

3000

1.02

3

20-50

40-100

80-200

100-250

1.8

0.000643

0.001302

2500

1.75

4

40-100

80-200

160-400

200-500

2.0

0.001306

0.002630

2000

2.55

5

70-175

140-350

280-700

380-875

2.2

0.002649

0.006329

1200

4.07

6

120-300

240-600

480-1200

600-1500

2.5

0.006690

0.028443

800

10.06

7

300-600

600-1200

1200-2400

1800-3200

2.8

0.007178

0.03595

400

13.05


Description

?Assembly tolerance: can be processed as required

?Quality related to the pore forming: inertial reference torque limiter hole diameter

?Can be equipped with micro mechanical switch or proximity switch





Dimensions

specification

D

F

E

K

dH7

K1

L

H

A1

A2

A3

a

b

s

SW

h6

maximum

0

45

22

30

40

11

35

28.5

24

7

6.5

4.5

2

4

4

4

1

70

38

47

65

20

56

47

40

12

7

8

5

6

7

7

2

85

44

62

80

25

71

56

48

13.5

8

11

7

7

7

7

3

100

56

75

95

35

85

67

59

16

9

14

9

9

7

7

4

115

70

90

110

40

100

73

64

17

10

16

10

10

8

8

5

135

84

100

130

50

116

86

75

20.5

12

18

10

12

10

10

6

171

100

130

166

65

150

130

115

46

16

21

12

15

13

13

7

220

123

145

220

75

138

138

140

50.5

37

44

14

22

15

15

Performance parameter

specification

Torque（N·m）

Overload stroke（mm）

inertia（kg·m2）

maximum

speed（rpm）

Mass

（kg）

T1

T2

T3

T4

Flange side

Nut side

0

0.62-1.3

1.3-2.6

2-3.8



0.8

0.000025

0.000049

4000

0.26

1

5-12.5

10-25

20-50

25-62.5

1.2

0.000093

0.000211

4000

0.68

2

10-25

20-50

40-100

50-125

1.5

0.000234

0.000531

3000

1.14

3

20-50

40-100

80-200

100-250

1.8

0.000643

0.001388

2500

1.98

4

40-100

80-200

160-400

200-500

2.0

0.001306

0.002846

2000

2.88

5

70-175

140-350

280-700

380-875

2.2

0.002649

0.006858

1200

4.59

6

120-300

240-600

480-1200

600-1500

2.5

0.006690

0.029432

800

8.81

7

300-600

600-1200

1200-2400

1800-3200

2.8

0.007178

0.03961

400

13.98


Description

?Assembly tolerance: according to customer requirements

?Quality is related to hole formation

?Can be equipped with micro mechanical switch or proximity switch






Dimensions

specification

d1(H8)

d2(H8)

d3(H7)

d4(H7)

DA

DH

D

LG1

LG2

L1

L2

maximum

maximum

maximum

maximum

1

28

20

28

20

70

55

70

102

95

30

47

2

35

25

38

25

85

65

85

120

112

35

57

3

45

35

45

35

100

80

100

146

138

45

69

4

45

45

55

40

115

95

115

159

150

50

74

5

55

55

60

50

135

105

135

182

171

56

87

6

80

65

80

65

175

135

171

255

240


75

130



Performance parameter

specification

Torque（Nm）

Stroke

（mm）

Maximum speed

（rpm）

T1

T2

T3

T4

1

5-12.5

10-25

20-50

25-62.5

1.2

4000

2

10-25

20-50

40-100

50-125

1.5

3000

3

20-50

40-100

80-200

100-250

1.8

2500

4

40-100

80-200

160-400

200-500

2.0

2000

5

70-175

140-350

280-700

380-875

2.2

1200

6

120-300

240-600

480-1200

600-1500

2.5

800


Description

?If the inner hole of the coupling end needs to be enlarged, the standard torque limiter can be equipped with a larger coupling

?Assembly tolerance: can be processed according to customer requirements

?The mass is only related to the hole formation, and the inertia only needs to refer to the coupling with the largest opening hole

?Can be equipped with micro mechanical switch or proximity switch






Performance parameter

specification

Torque（N·m）

stroke（mm）

Maximum speed

(rpm)

A4

V4

DH7-Ch7

T1

T2

T3

T4

0

0.62-1.3

1.3-2.6

2-3.8



0.8

4000

According to working conditions

1

5-12.5

10-25

20-50

25-62.5

1.2

4000

2

10-25

20-50

40-100

50-125

1.5

3000

3

25-50

40-100

80-200

100-250

1.8

2500

4

40-100

80-200

160-400

200-500

2.0

2000

5

70-175

140-350

280-700

380-875

2.2

1200

6

120-300

240-600

480-1200

600-1500

2.5

800

7

300-600

600-1200

1200-2400

1800-3200

2.8

400

Assembly example

Description

?Please contact our company for specific transition flange size

?Quality reference torque limiter prefabricated hole
